BQ TimberLock Glulam Hardwood Pergola

Pergolas & Outdoor Structures · Flat-pack Australian hardwood glulam pergola frame

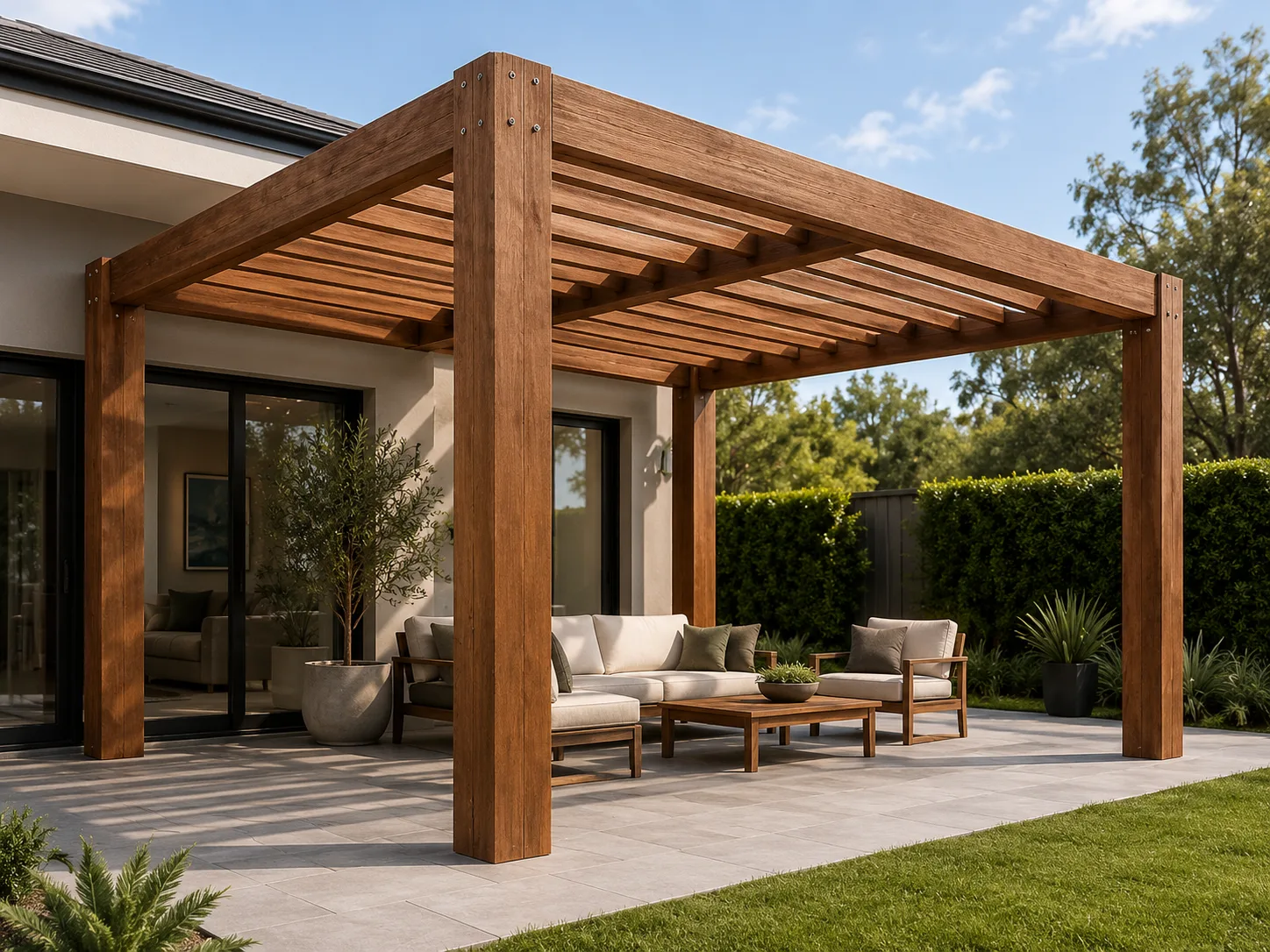

BQ TimberLock Glulam is a flat-pack architectural pergola frame system manufactured from Australian hardwood glulam - H3 treated, finger-jointed and laminated for strength and stability.

Select colours and profiles to add them to your shopping list.

Select colour

Profile

Main profileGlulam 3x3m Bay Kit
Specs3000mm × 3000mmPart noBQ-TL-GLULAM-3X3UOMkit
Additional profileGlulam 4x3m Bay Kit
Specs4000mm × 3000mmPart noBQ-TL-GLULAM-4X3UOMkit
Additional profileGlulam 6x3m Bay Kit
Specs6000mm × 3000mmPart noBQ-TL-GLULAM-6X3UOMkit

Description

BQ TimberLock Glulam is a flat-pack architectural pergola frame system manufactured from Australian hardwood glulam - H3 treated, finger-jointed and laminated for strength and stability. Sourced from certified Australian plantation and native hardwood mills. Each kit arrives pre-drilled with all members labelled. Proprietary stainless steel fixings, post bases and rafter saddles are included. Available in 3m, 4m and 6m bay widths at 3m rafter span.

Performance

Moisture resistantBAL 12.5Structural GradeAustralian made2 colourways

Installation guide · buildquote.com.auInstallation guideDesign guide · buildquote.com.auDesign guideTechnical guide · buildquote.com.auTechnical guideWebsite · buildquote.com.auBQ TimberLock website

1

Fasteners

BQ TimberLock M12 Stainless Bolt PackGrade 316 stainless M12 x 100mm hex head bolt pack for structural connections in BQ TimberLock pergola systems. Includes bolts, washers and nuts. 10 sets per pack. Suits post base and beam-to-post bracket connections.
Specs—Part noBQ-TL-BOLTPACK-M12UOMpack
2

Structural

BQ TimberLock Stainless Rafter Saddle ClipGrade 316 stainless steel rafter saddle clip for locating and securing BQ TimberLock rafters to the beam at 600mm centres. Prevents rafter twist and lateral movement. Suits 140x35mm and 140x45mm rafter profiles.
Specs—Part noBQ-TL-RAFTERSADDLE-SSUOMbag
BQ TimberLock Stainless Post Base Surface MountGrade 316 stainless steel adjustable post base for surface mounting BQ TimberLock pergola posts to concrete slabs or decking frames. Accepts 140x140mm post. Adjustable 0-10mm for level setting. Supplied with M12 stainless anchor bolts.
Specs—Part noBQ-TL-POSTBASE-SSUOMeach
BQ TimberLock Stainless Beam-to-Post BracketGrade 316 stainless steel concealed beam-to-post connection bracket for BQ TimberLock pergola systems. Slides into pre-routed slot in post top and accepts beam from either side. Rated to 8kN vertical load.
Specs—Part noBQ-TL-BEAMBRACKET-SSUOMeach
3

Accessories

BQ TimberLock Stainless Post Cap 140x140Grade 316 stainless steel flat cap for the top of exposed BQ TimberLock pergola posts. Prevents moisture ingress into end grain on unprotected post tops. Press-fit with stainless fixings. Suits 140x140mm posts.
Specs—Part noBQ-TL-POSTCAP-SSUOMeach
4

Maintenance

BQ TimberLock Exterior Timber Oil 4LUV-stable penetrating exterior timber oil for maintaining and protecting BQ TimberLock Accoya and Glulam pergola frames. Water-based, low VOC. Apply 2 coats on installation; reapply annually or as required. Available in Natural, Dark Walnut and Weathered Silver tints.
Specs—Part noBQ-TL-TIMBEROIL-4LUOMtin
